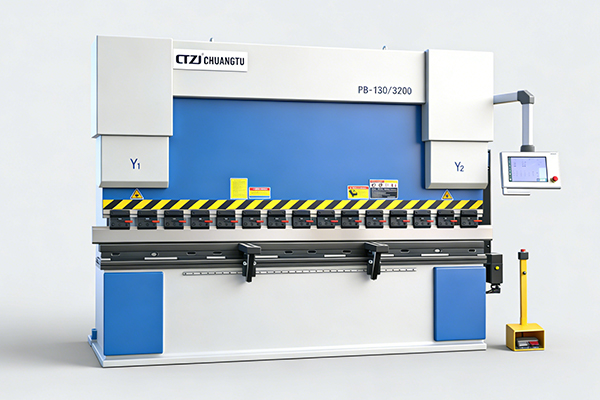

WE67K Servo Electro Hydraulic Synchronized CNC Press Brake
Nominal pressure(kw): 400~10000
Length of working table(mm): 2000~12000
Distance between uprights(mm): 1800~5600
Throat depth(mm): 250~600
Ram stroke(mm): 100~500
motor power(mm): 4~75
- Extremely high bending accuracy and excellent consistency across batches of workpieces
- Bending production efficiency has increased significantly, and changeovers and machine set-up are now faster
- Energy-saving and reduced consumption, resulting in lower long-term operating costs
- Intelligent CNC operation, easy to get to grips with
- The process is suitable for a wide range of applications and enables complex workpieces to be formed in a single operation
- Low noise and low loss; safe, durable and easy to maintain
- Closed-loop synchronisation control ensures stable synchronisation between the left and right sliders
Intelligent CNC System
DA-53T(Delem)
- ・Up to 4 axes (Y1,Y2 + 2 aux. axes)
- ・Crowning control
- ・Tool / material / product library
- ・TandemLink (option)
- ・Servo and frequency inverter control
- ・USB memory stick interfacing
- ・Profile-T offline software
DA-58T(Delem)
- ・2D graphical touch screen programming
- ・15″ high resolution colour TFT
- ・Bend sequence calculation
- ・Servo and frequency inverter control
- ・USB, peripheral interfacing
- ・Profile-T offline software
DA-66T(Delem)
- ・2D graphical touch screen programming mode
- ・17″ high resolution colour TFT
- ・Full Windows application suite
- ・USB, peripheral interfacing
- ・User specific application support within the control’s multitasking environment
More Details

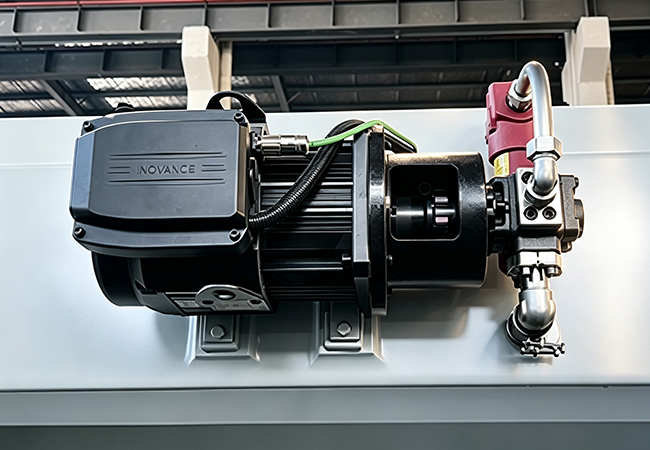

Main Servo Motor

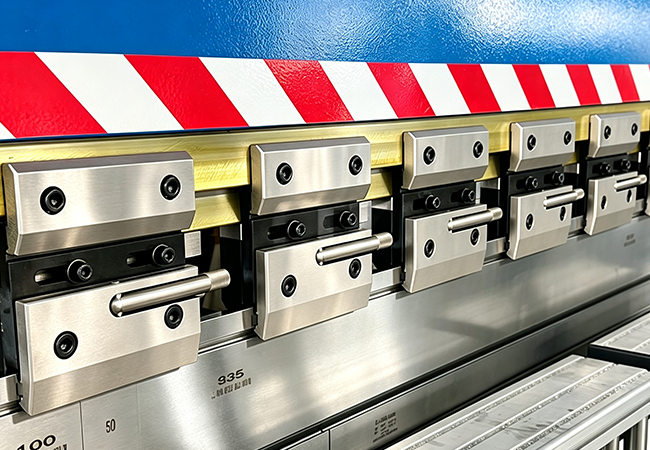

Quick-Clamp Device

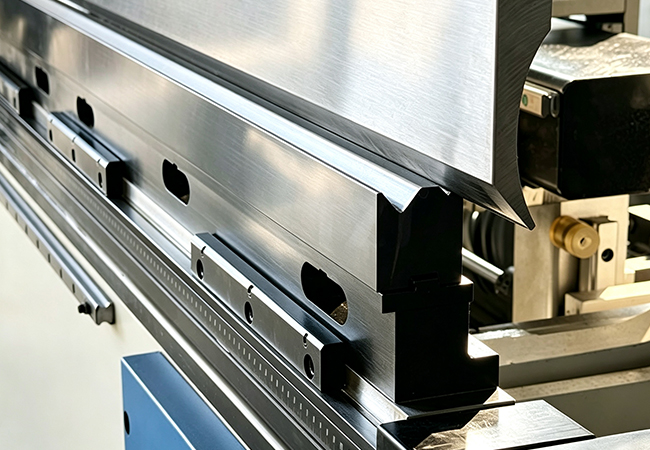

Upper and Lower Dies

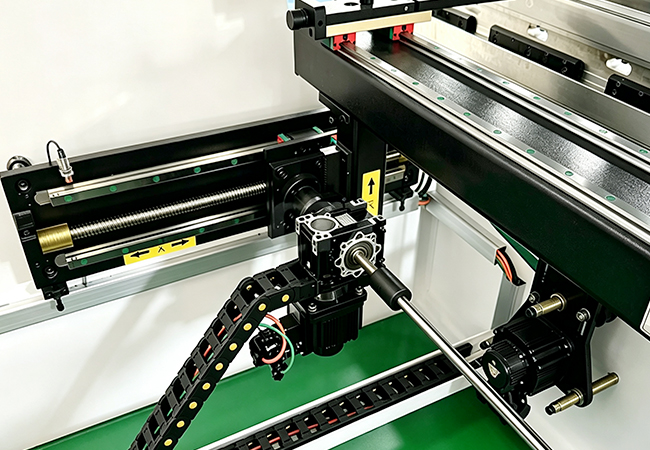

Rear Stop System

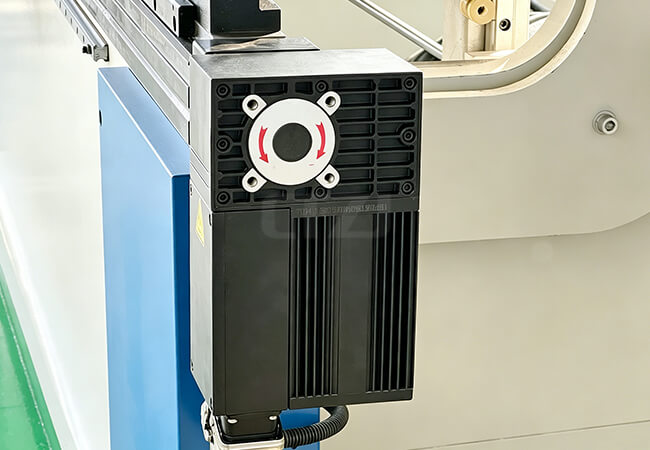

Electric Compensation Device

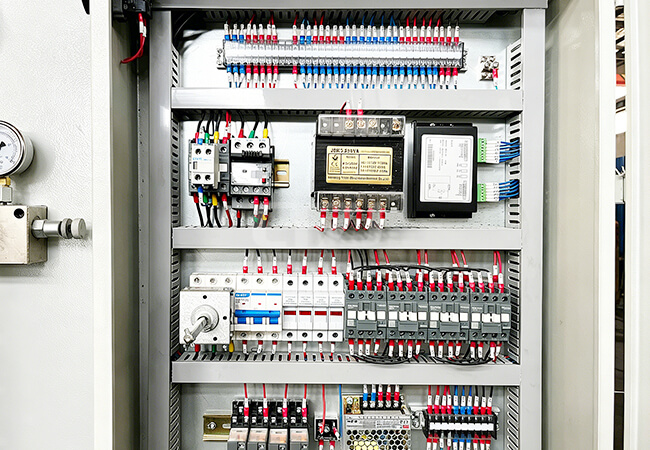

Electrical Control Cabinet
Technical Specifications
| Specification | Nominal pressure (kw) |
Length of working table (mm) |
Distance between uprights (mm) |
Throat depth (mm) |
Ram stroke (mm) |
Main motor power (mm) |
| WE67K40/2000 | 400 | 2000 | 1800 | 250 | 100 | 4 |
| WE67K40/2200 | 400 | 2200 | 1800 | 250 | 100 | 4 |
| WE67K40/2500 | 400 | 2500 | 2000 | 250 | 100 | 4 |
| WE67K50/2500 | 500 | 2500 | 1900 | 250 | 100 | 4 |
| WE67K50/3200 | 500 | 3200 | 2600 | 250 | 100 | 4 |
| WE67K63/2500 | 630 | 2500 | 2020 | 250 | 120 | 5.5 |
| WE67K63/3200 | 630 | 3200 | 2600 | 250 | 120 | 5.5 |
| WE67K80/3200 | 800 | 3200 | 2600 | 250 | 120 | 5.5 |
| WE67K80/4000 | 800 | 3200 | 3200 | 250 | 120 | 5.5 |
| WE67K100/2500 | 1000 | 2500 | 2000 | 320 | 120 | 7.5 |
| WE67K100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 7.5 |
| WE67K100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 7.5 |
| WE67K100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
| WE67K125/2500 | 1250 | 2500 | 2000 | 320 | 120 | 7.5 |
| WE67K125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 7.5 |
| WE67K125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 7.5 |
| WE67K125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
| WE67K160/3200 | 1600 | 3200 | 2600 | 400 | 200 | 11 |
| WE67K160/4000 | 1600 | 4000 | 3200 | 400 | 200 | 11 |
| WE67K160/5000 | 1600 | 5000 | 4000 | 400 | 200 | 15 |
| WE67K160/6000 | 1600 | 6000 | 4800 | 400 | 200 | 15 |
| WE67K200/3200 | 2000 | 3200 | 2600 | 400 | 200 | 15 |
| WE67Y200/4000 | 2000 | 4000 | 3200 | 400 | 200 | 15 |
| WE67K200/5000 | 2000 | 5000 | 4000 | 400 | 200 | 15 |
| WE67K200/6000 | 2000 | 6000 | 4800 | 400 | 200 | 15 |
| WE67K250/3200 | 2500 | 3200 | 2600 | 400 | 250 | 22 |
| WE67K250/4000 | 2500 | 4000 | 3200 | 400 | 250 | 22 |
| WE67K250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 22 |
| WE67K300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 22 |
| WE67K300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 22 |
| WE67K300/6000 | 3000 | 6000 | 4800 | 400 | 250 | 22 |
| WE67K400/5000 | 4000 | 5000 | 4000 | 400 | 250 | 30 |
| WE67K400/6000 | 4000 | 6000 | 4800 | 400 | 250 | 37 |
| WE67K500/6000 | 5000 | 6000 | 4800 | 400 | 300 | 37 |
| WE67K500/12000 | 5000 | 12000 | Multi-column | 400 | 300 | 37 |
| WE67K600/7000 | 6000 | 7000 | 5600 | 400 | 300 | 45 |
| WE67K700/7000 | 7000 | 7000 | 5600 | 400 | 300 |
45 |
| WE67K800/6000 | 8000 | 6000 | 5600 | 500 | 400 | 55 |
| WE67K1000/6000 | 10000 | 6000 | 5600 | 600 | 500 | 75 |
Video
Frequently Asked Questions
We usually dispatch the goods within 30 days. If the machine is a non-standard, custom-made product, it may take longer. Generally speaking, the delivery time will not exceed 50 days.
We generally accept payment by telegraphic transfer (T/T) and letter of credit (L/C), requiring a 40% deposit, with the remaining 60% to be paid in full prior to delivery. For specific clients, we can offer more flexible payment terms.
The warranty period for the equipment is one year, with lifetime support provided. For specialised, non-standard equipment, we may offer a longer warranty period. During the warranty period, we provide free servicing should the equipment develop any quality issues or require replacement parts.
We do offer OEM customisation services, including customisation of appearance, dimensions and performance specifications. Please note that the price of customised equipment may be slightly higher. If you would like to find out more about our OEM services, please contact us.
Whether standard or customised, the minimum order quantity is one unit, and we can meet your specific requirements through our OEM services.
Upon delivery of the equipment, we usually provide various manuals, operating instructions, safety precautions, circuit diagrams and other documentation.
Sea freight charges are usually determined by the freight forwarder. You can choose to arrange transport through our freight forwarder, or select your own freight forwarder.
We can provide after-sales support, including commissioning, training and maintenance, to customers worldwide; however, customers are required to cover the costs of our technical engineers.
Chuangtu is keen to collaborate with ambitious teams. We offer comprehensive technical and pricing support to help you develop the market. If you are interested, please contact us so we can discuss this further.
We generally opt for sea freight. If a customer orders small equipment, we will ship it via less-than-container load (LCL); if a customer orders one or more medium-sized or large items in a single order, we will pack them into a container and transport them to the port, which will help the customer save on costs.
